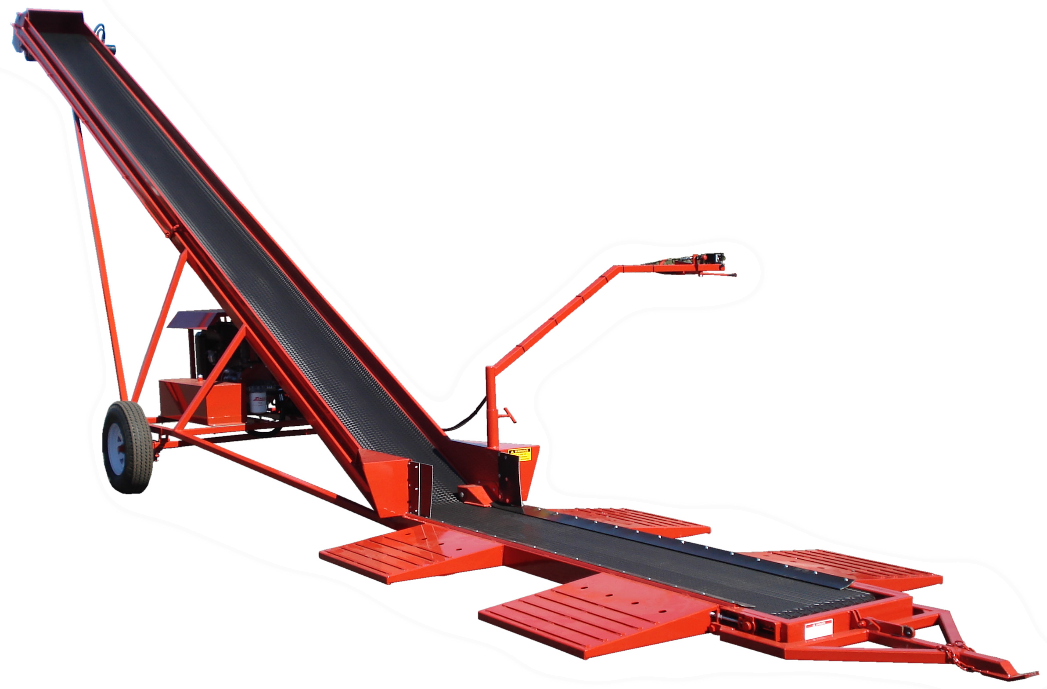

2ft Drive Over Elevator

A 2 stage, high capacity elevator with a 24" wide belted chain allows for wide open door bottom dump unloading.The side drive option allows the elevator to be self-propelled.

Specifications

Dump Height: 12ft-6in Belt Width: 24in Transport Height: 13ft Tires: 700-15 Suspension: Leaf Spring Engine: 24 hp Gas Capacity: 2 ton/minute

Options

  • 35hp Diesel Engine

  • Cleated Belt

  • Self Propelled Ground Drive

  • Splash Flaps

  • Back Over Ramp Fillers

Features

  • Adjustable Directional Flow Hood

  • Quality, name-brand components

  • Well Balanced

  • Swing out control arm.

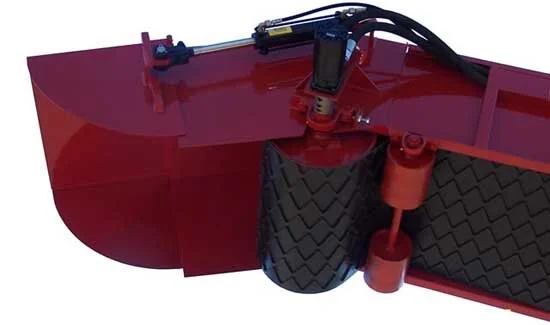

The adjustable directional flow hood.

The adjustable directional flow hood.

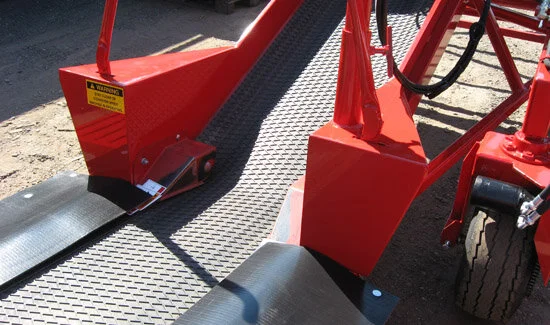

Manual Controlled Splash Flaps.

Manual Controlled Splash Flaps.

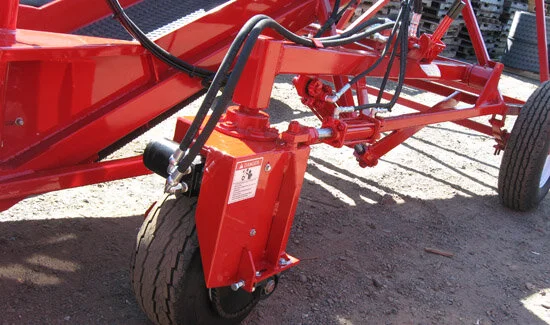

Option of Self Propelled Ground Drive.

Option of Self Propelled Ground Drive.
